XAMPP is a complete package to install the Apache Web Server, MySQL, PHP, Perl, FTP Server and phpMyAdmin for Linux, Solaris, Windows, and Mac OS X. It also provides an interface to admin Apache Web Server, MySQL, and PHP. This tutorial provides all the steps required to install XAMPP on Windows 10. The steps should be similar for other versions of Windows.

Download XAMPP

Download the most recent version of XAMPP from SourceForge or Apache Friends. The XAMPP page on SourceForge looks like the one as shown in Fig 1.

Download XAMPP

Fig 1

The XAMPP page on Apache Friends looks like the one as shown in Fig 1a.

XAMPP Apache Friends

Fig 1a

Click on the Download Button to start the download.

Install XAMPP

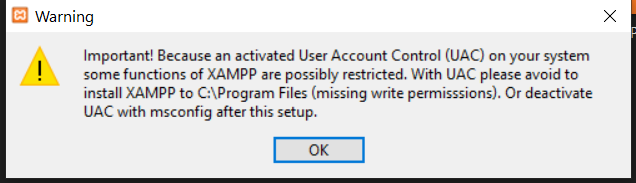

Now execute the installer to start installing XAMPP on Windows. It showed me a UAC warning as shown in Fig 2.


Fig 2

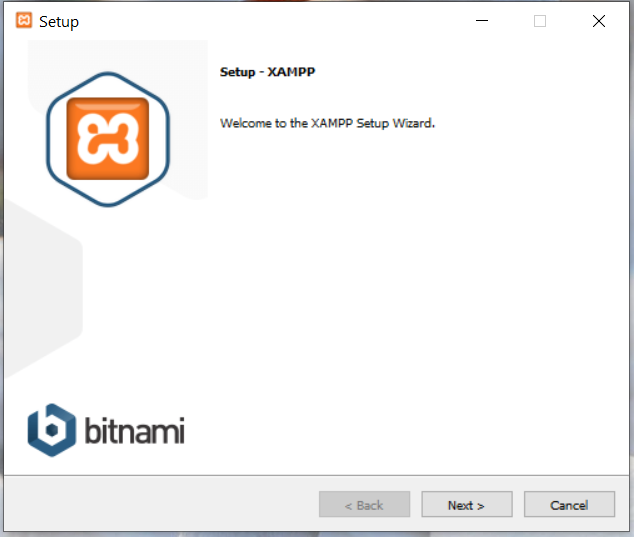

In case you also get this warning, press OK Button to continue with the installation. It will show the Welcome Screen as shown in Fig 3.

XAMPP Welcome Screen

Fig 3

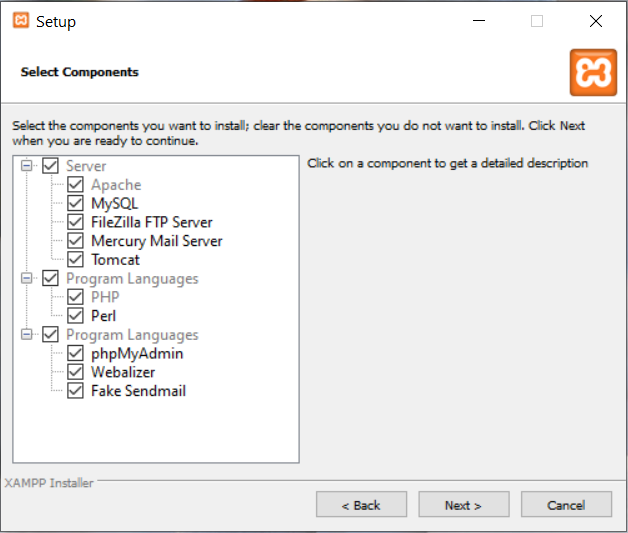

Click on the Next Button to continue with the installation. The next screen provides options to choose the components to be installed on the Windows system as shown in Fig 4.

XAMPP Components

Fig 4

It shows that Apache and PHP are mandatory components and provide options to deselect remaining components. Choose appropriate components to be installed and click on the Next Button. To start with PHP development, you can select at least Apache, MySQL, PHP, and phpMyAdmin. The next screen provides options to choose the installation directory as shown in Fig 5.

XAMPP Installation Path

Fig 5

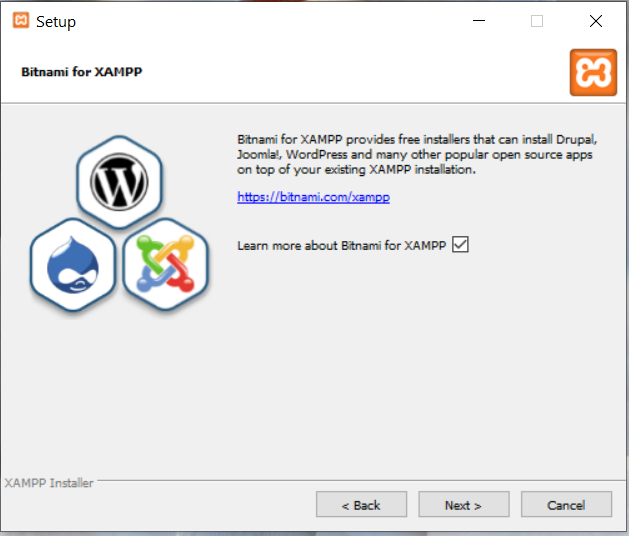

Choose the appropriate installation directory and press Next Button to continue with the installation. The next screen provides options to learn more about Bitnami for XAMPP as shown in Fig 6.

XAMPP Bitnami Options

Fig 6

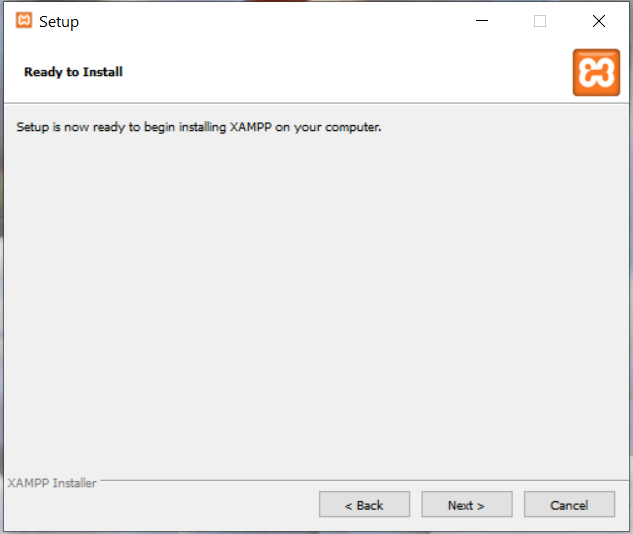

You may keep the checkbox checked. It will open the Bitnami page for XAMPP to learn more about it. Now click the Next Button to finalize the selections. The next screen shows the confirmation message to start the actual installation of the components as shown in Fig 7.

XAMPP Ready To Install

Fig 7

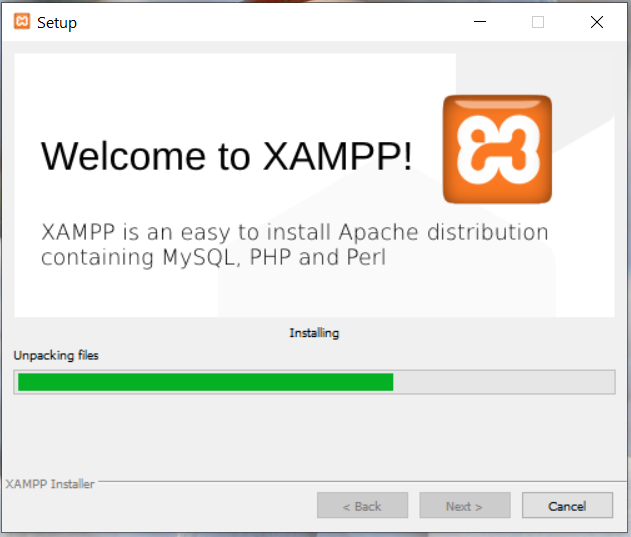

Click on the Next Button to start installing the components. It will show the installation progress as shown in Fig 8.

XAMPP Installation Progress

Fig 8

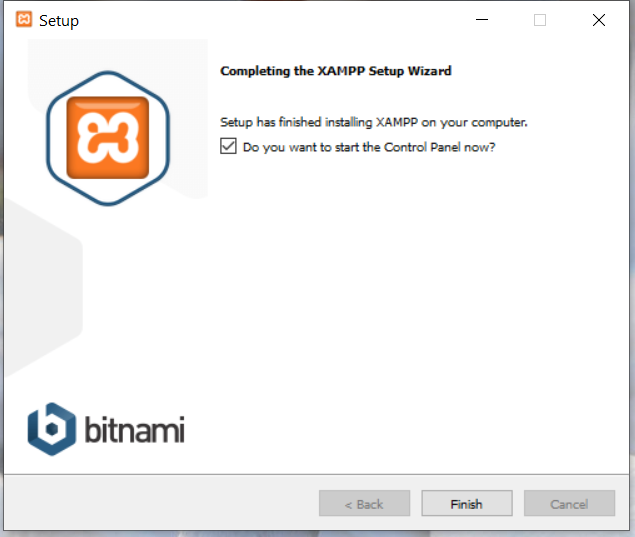

It will show the success message after completing the installation as shown in Fig 9.

XAMPP Installed

Fig 9

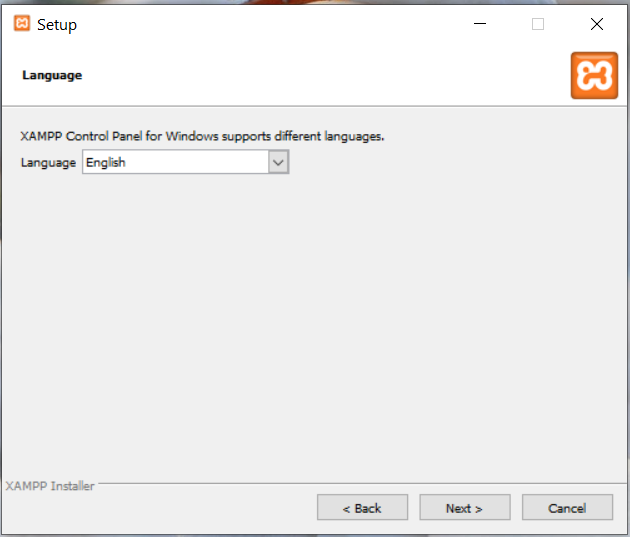

It also provides options to start the Control Panel for the first. You may keep the option checked and click on the Finish Button to close the installer. It shows the options to choose language on the first start as shown in Fig 10.

XAMPP Language Options

Fig 10

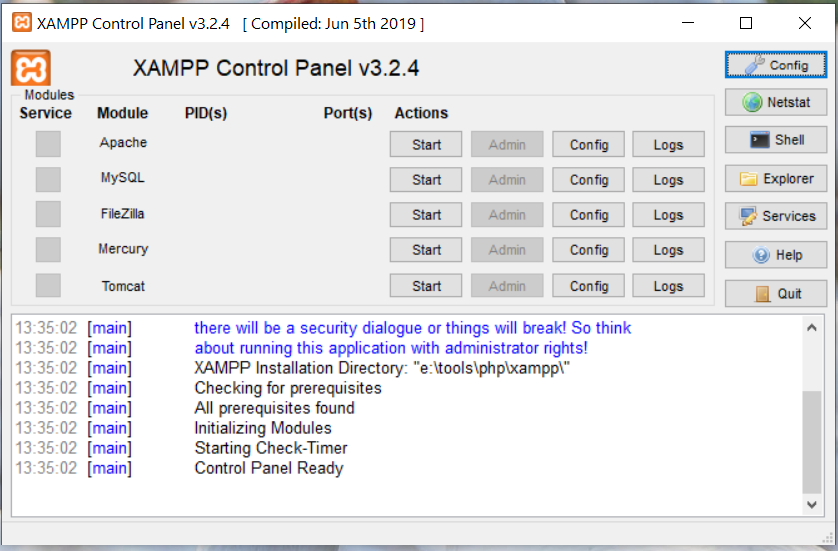

Click on the Save Button to confirm the language. It will launch XAMPP Control Panel. It look like the one as shown in Fig 11.

XAMPP Control Panel

Fig 11

It provides options to start, stop, and configure the components selected at the start of the installation. It's showings options only for Apache in my case since I have deselected all other components at the start of installation.

Start Apache

In this step, we will start the Apache Web Server and open the default page. Click on the Start Button next to apache to start the webserver. It will show the windows security warning for the first time as shown in Fig 12.

XAMPP Security Warning

Fig 12

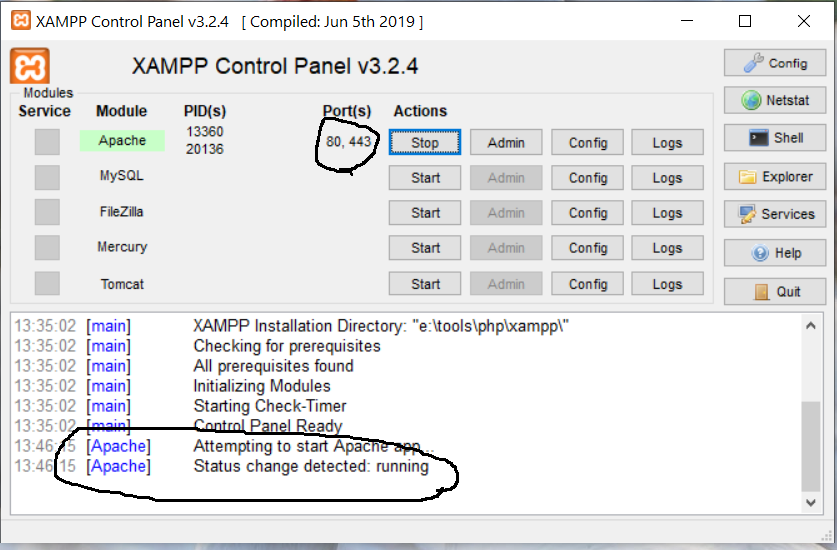

It shows the status of the Apache Web Server and ports used by it to access it from the browser as shown in Fig 13.

XAMPP Apache Status

Fig 13

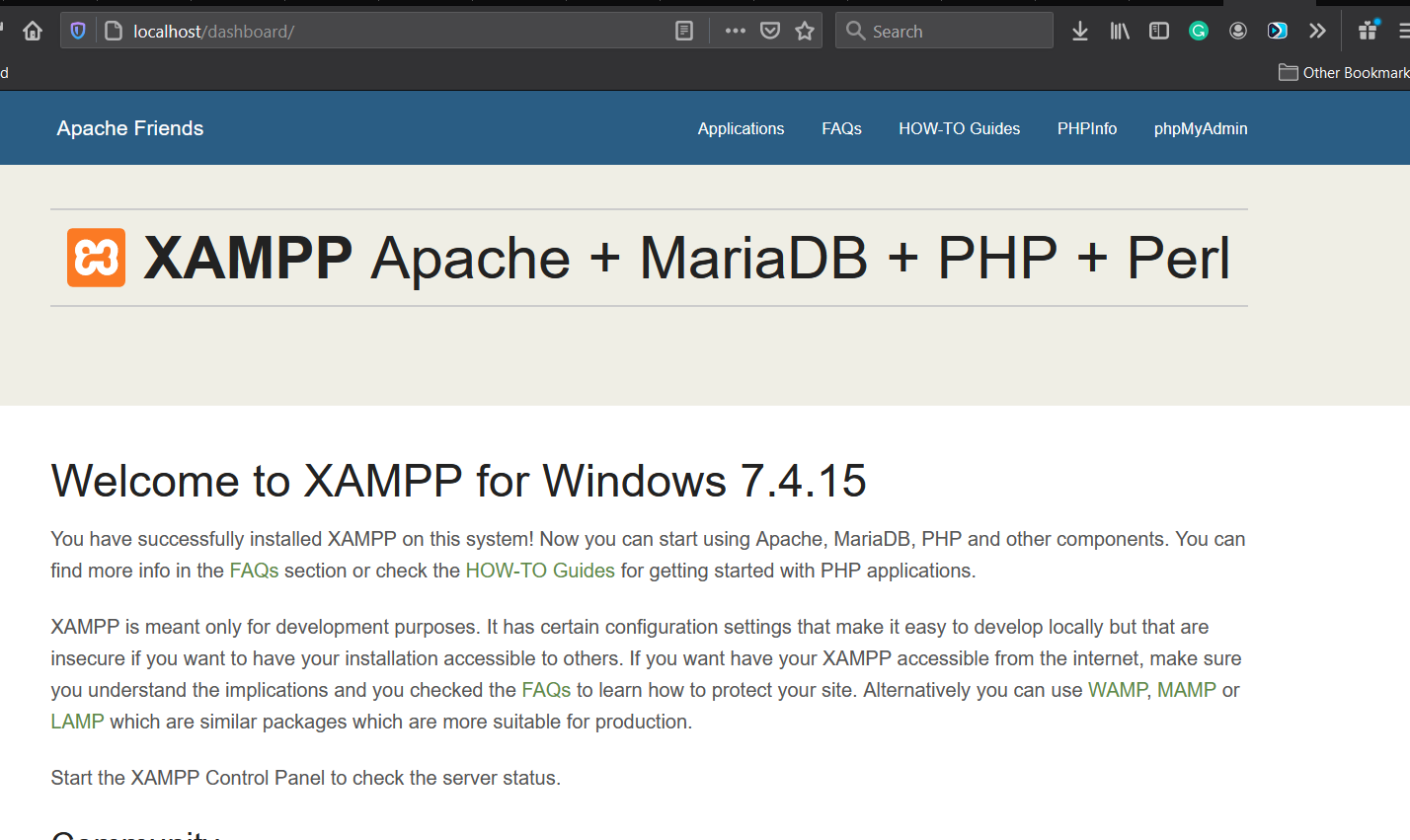

Now open the Browser of your choice and enter the URL http://localhost. It will show the XAMPP dashboard as shown in Fig 14.

XAMPP Dashboard

Fig 14

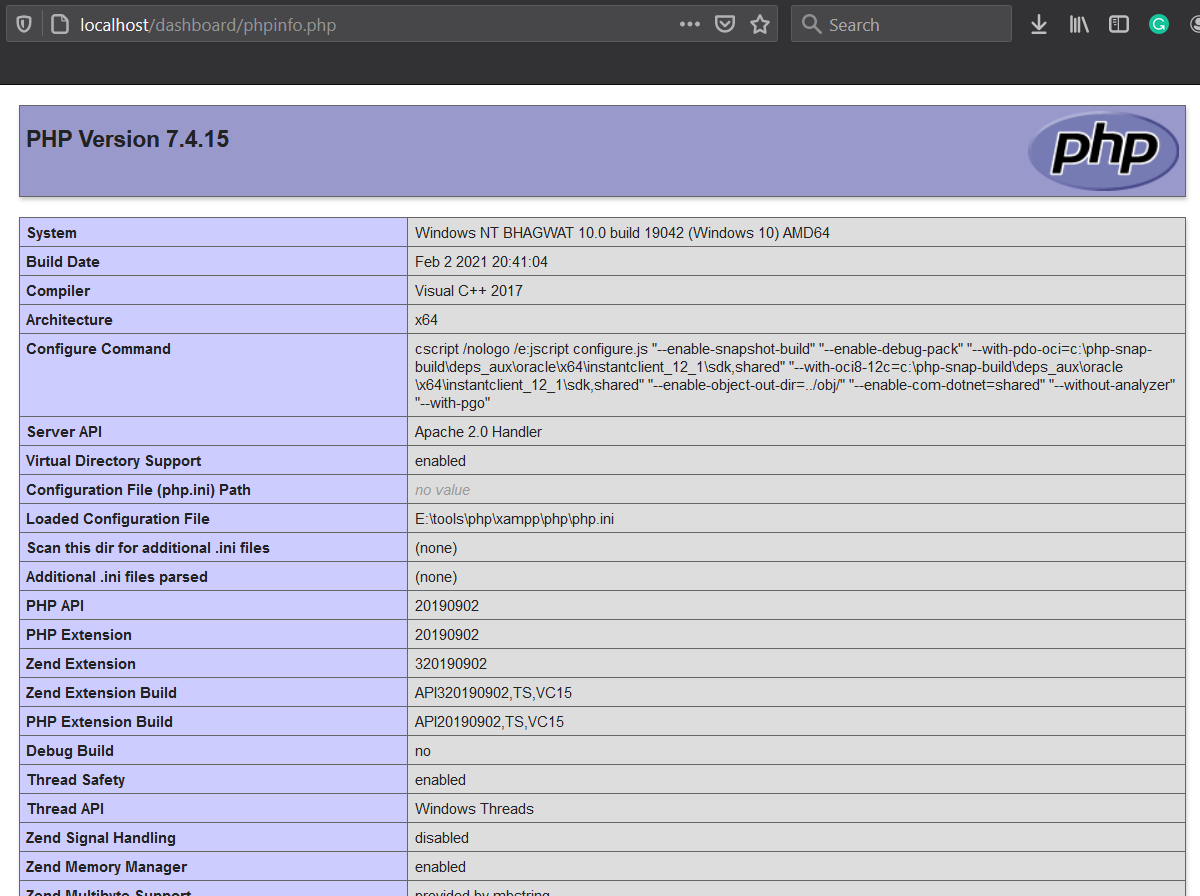

Now click on the PHPInfo Link. It will show the complete details of the PHP version and the packages as shown in Fig 15.


Fig 15

Other Components

Similar to Apache, we can start and stop the other components including MySQL, FileZilla, Mercury, and Tomcat. We can access the phpMyAdmin application from the XAMPP Dashboard as shown in Fig 14.


In this tutorial, we have discussed the steps required to install XAMPP on Windows 10. We can install and admin Apache, PHP, MySQL, FileZilla, Mercury, Tomcat, and phpMyAadmin on windows using XAMPP instead of installing and configuring these components separately.
